R135,000.00 INC VAT

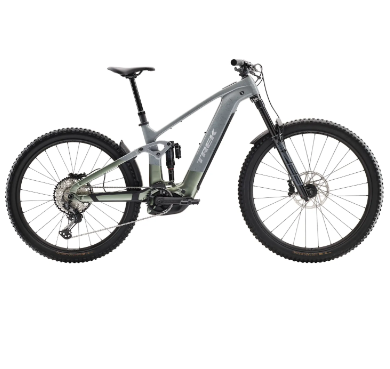

The Rail+ 9.7 is a carbon enduro e-MTB built for your biggest adventures. With 160 mm front and rear travel, the Rail+ is ready to rip through the rough, while a powerful Bosch Performance CX drive system makes long climbs and fast laps a breeze. It packs in adjustable geometry that lets you customise your bike for how and where you ride, a massive battery that keeps you going lap after lap, and a Shimano drivetrain that delivers quick shifts you can count on for the long miles.
You want a carbon e-MTB that delivers big power and big travel for epic adventures. You need enough suspension for charging through rocks, roots and any other obstacle you encounter, tons of power for torquing up steep, punchy climbs and a big battery to keep you supported on the longest rides.
An OCLV Mountain Carbon frame with Bosch Performance CX system (85 Nm, 250 W) and a massive 800 Wh RIB 2.0 removable integrated battery. A 160 mm RockShox ZEB Select fork with DebonAir spring, Charger RC damper, and RockShox Super Deluxe Select+ RT rear shock. Tubeless Ready Bontrager Line Comp 30 wheels, a Shimano XT and SLX blend drivetrain, 4-piston SRAM hydraulic disc brakes and an internally-routed dropper post.
Looking for an e-MTB that takes you far, far beyond the beaten track? Rail+ 9.7 delivers. This carbon enduro e-bike is made for your biggest pursuits, with plenty of travel for charging into the beyond, a massive battery to keep you supported through big miles and a powerful motor that crushes climbs.
*Please note – spec applies to all sizes unless listed separately
| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel |
|---|---|
| Fork | RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel |
| Shock | RockShox Super Deluxe Select+ RT, 205mm x 65mm |
| Max compatible fork travel | 180 mm |
| *Wheel front | Size: S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5″ |
|---|---|
| Size: M, L, XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29″ |
|
| Wheel rear | Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 27.5″ |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Tyre | Size: S, M, L, XL Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5×2.50″ |
| Size: M, L, XL Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.50″ |
|
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | Frame: 27.5×2.60″, Fork: See manufacturer |
| Battery | Bosch PowerTube 800 Wh, smart system |
|---|---|
| Charger | Bosch standard 4A, 110 V, smart system |
| Controller | Bosch System Controller BRC3100, smart system |
| Motor | Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
| Shifter | Shimano SLX M7100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| Crank arm | E*thirteen E*spec Plus, 160 mm length |
| Cassette | Shimano SLX M7100, 10-51T, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 36T |
| Saddle | Bontrager Verse P3, chromoly rails |
|---|---|
| *Seatpost | Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
| Size: M, L, XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
|
| Size: L, XL Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
|
| Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Head set | Integrated cartridge bearing, 1-1/8″ top, 1.5″ bottom, angle adjust cup compatible |
| Brake | SRAM DB 8 4-piston hydraulic disc |
| Brake rotor | SRAM CentreLine, 6-bolt, round-edge, 200 mm |
| Rotor size | Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer |
| Mudguard | Trek 27.5″ custom fender |
|---|
| Weight | M – 23.73 kg / 52.32 lb (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
