Trek Checkpoint ALR 5 Gen 3

The Trek Checkpoint ALR 5 Gen 3 is a purpose-built gravel bike designed for riders who want a capable, versatile, and thoroughly modern aluminium machine without stepping into carbon territory. Finished in a striking Fjord Blue to Miami Green Fade colourway, this third-generation Checkpoint ALR suits the enthusiast gravel rider who demands a bike that performs equally well on mixed-surface adventures, weekend bikepacking runs, and daily commutes.

Who Is the Trek Checkpoint ALR 5 Gen 3 Built For?

The Trek Checkpoint ALR 5 Gen 3 is built for the gravel enthusiast who rides regularly on a mix of gravel roads, dirt tracks, and tarmac. It suits riders moving from road cycling into the gravel world, as well as those who want a dependable, adventure-ready bike that doubles as a practical daily rider. The updated geometry, wide tyre clearance, and comprehensive mounting options make it equally at home on a long weekend adventure as on a fast commute.

Specification	Detail
Frame	300 Series Alpha Aluminium, internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat-mount disc, 142x12mm thru-axle

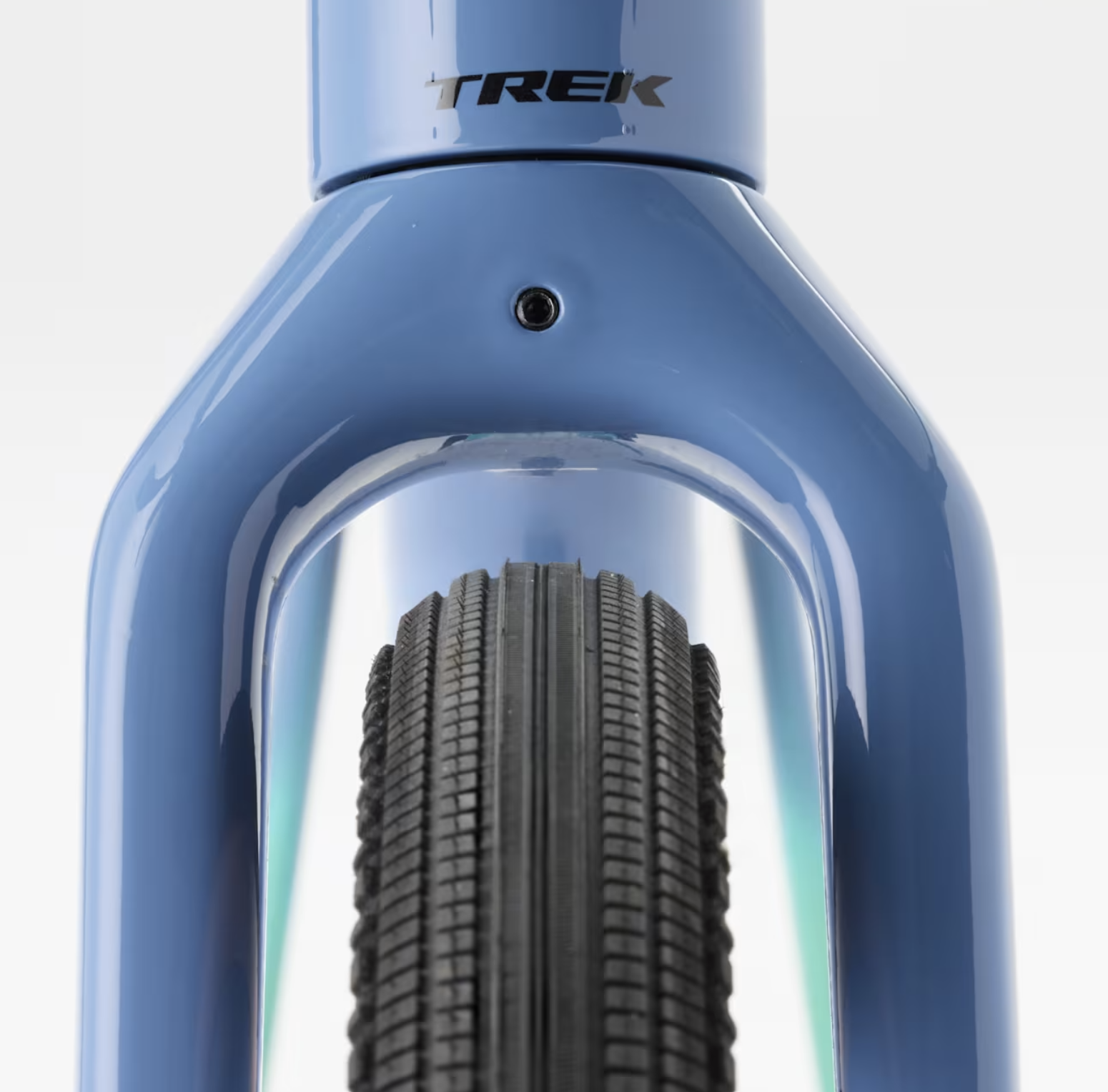

Fork	Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat-mount disc, 12x100mm thru-axle

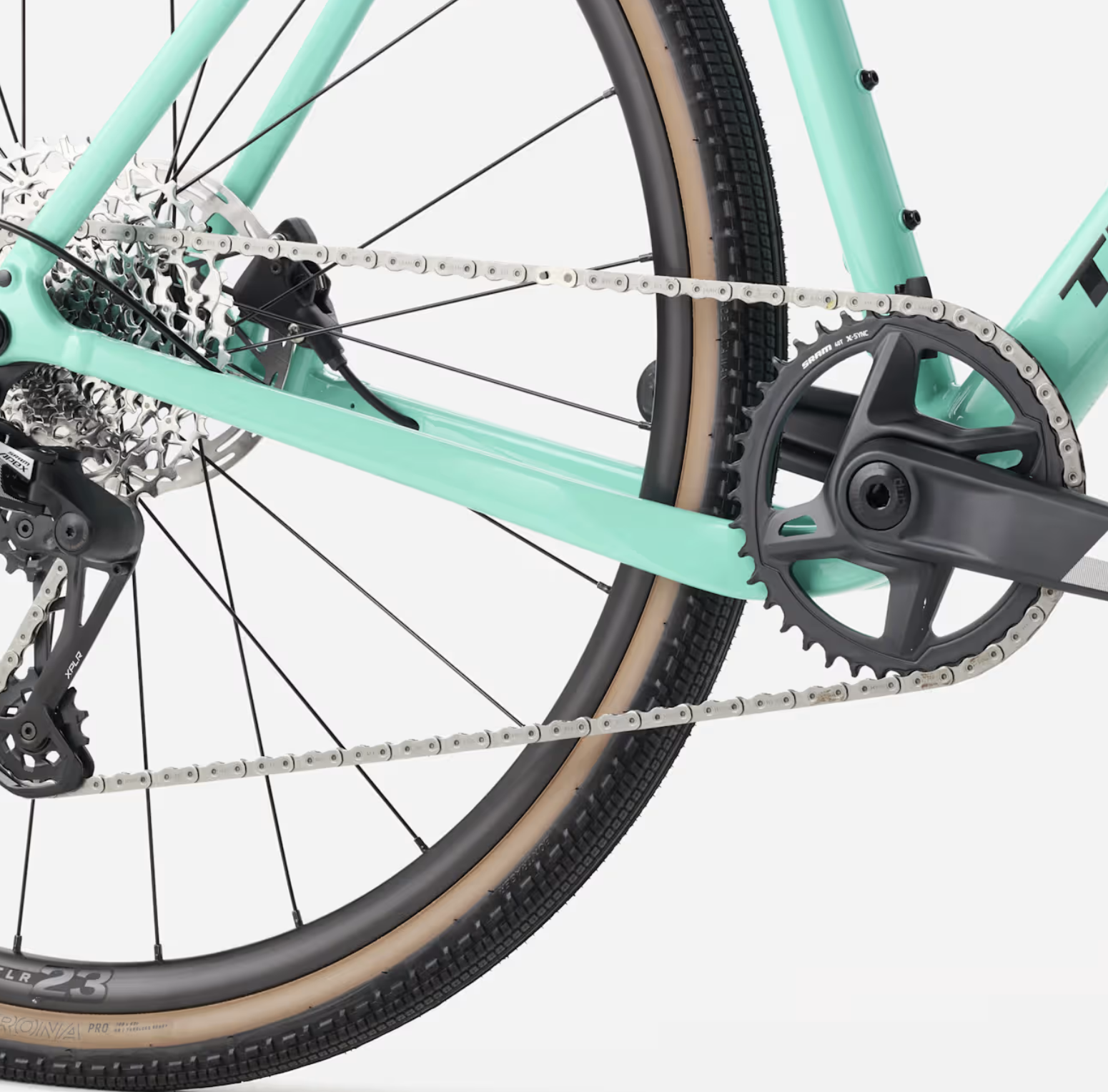

Drivetrain	SRAM Apex XPLR 1×12 mechanical, 40T crankset, 11-44T cassette
Brakes	SRAM Apex D1 hydraulic disc, flat-mount, SRAM Paceline 160mm centerlock rotors
Wheels	Bontrager Paradigm 23, tubeless ready, 24-hole, 23mm internal width
Tyres	Bontrager Girona Pro, Tubeless Ready, GR puncture protection, 700x42mm; max clearance 50mm without fenders

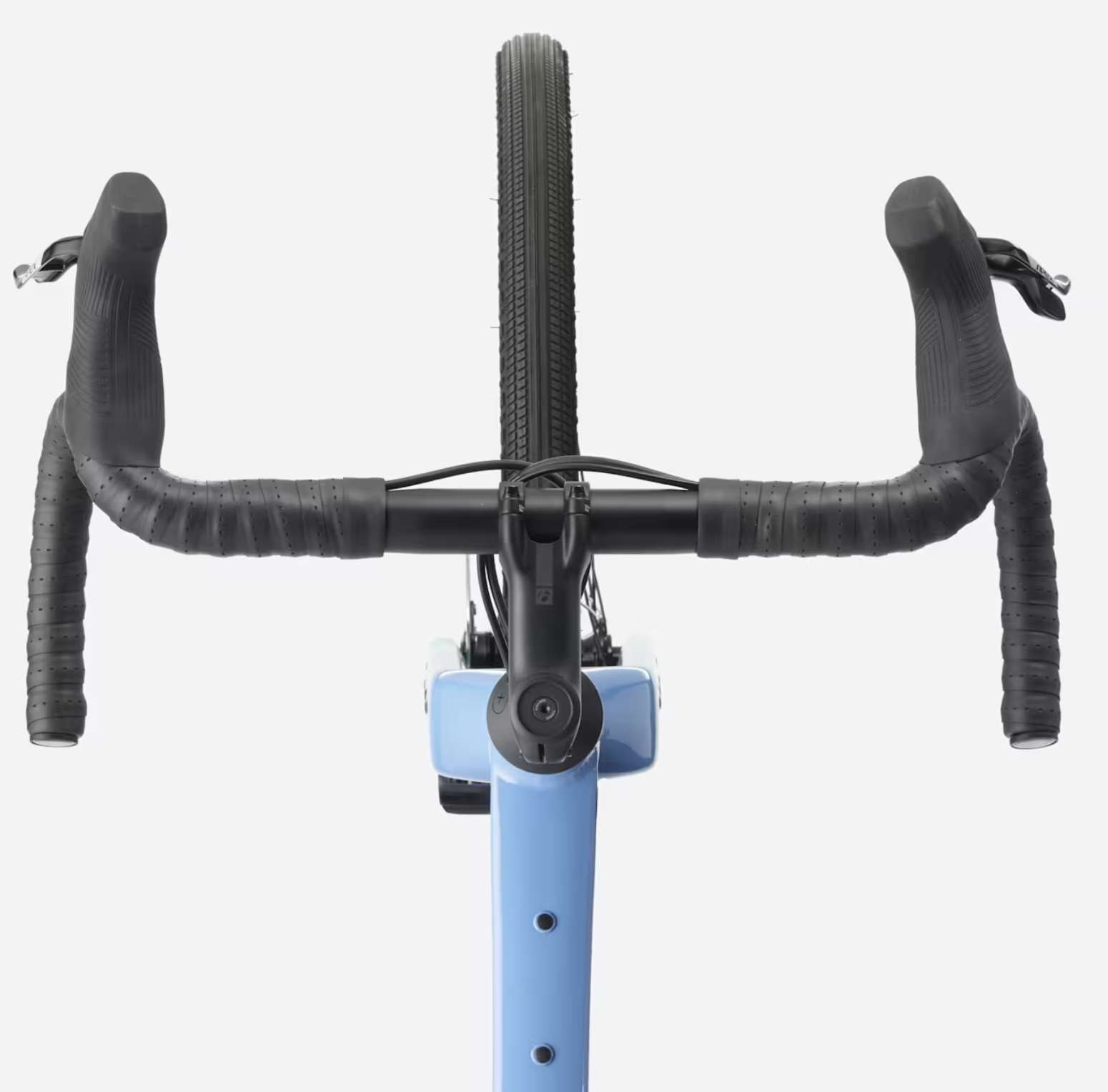

Handlebar	Bontrager Elite Gravel alloy, 40–46cm width (size-dependent)
Seatpost	Bontrager alloy, 27.2mm diameter, 12mm offset, 330mm length
Weight	ML: approximately 9.87 kg / 21.76 lb (tubeless with sealant, no tubes)
Colour	Fjord Blue to Miami Green Fade

Trek Checkpoint ALR 5 Gen 3: Built to Ride Further, Handle More

The Trek Checkpoint ALR 5 Gen 3 earns its reputation as one of the most well-rounded aluminium gravel bikes available today. The frame is TIG-welded from Trek’s 300 Series hydroformed Alpha Aluminium, a material that Trek has refined across generations to produce tube shapes that minimise weight while maximising stiffness where it matters. The third-generation update brings a taller stack and modestly shorter reach compared to its predecessor, placing the rider in a more upright, comfortable position that suits long days in the saddle on rough terrain. Paired with the full carbon fork shared with the premium Checkpoint SL carbon model, the Trek Checkpoint ALR 5 Gen 3 delivers surprising compliance for an aluminium frame, filtering out road buzz and gravel chatter effectively for a bike in this category.At the heart of the drivetrain sits SRAM’s Apex XPLR 1×12 mechanical groupset, a thoughtfully specced choice for mixed-surface riding. The single 40T chainring paired with an 11-44T wide-range cassette gives the Trek Checkpoint ALR 5 Gen 3 a gear spread broad enough to tackle steep climbs loaded with bikepacking gear and open enough to maintain momentum on flat gravel roads. SRAM Apex D1 hydraulic disc brakes provide reliable, modulated stopping power in all weather conditions, matched to 160mm Paceline centerlock rotors front and rear. The Universal Derailleur Hanger dropout future-proofs the build for drivetrain upgrades down the line, a detail that speaks to Trek’s thoughtful engineering at this price point. Riders who want to explore what Enduroplanet’s range of gravel bikes has to offer will find the Trek Checkpoint ALR 5 Gen 3 sits firmly among the most complete packages available.Versatility is woven into every detail of the Trek Checkpoint ALR 5 Gen 3. The frame comes with integrated frame bag mounts, front and rear rack mounts, fender mounts, and triple-bottle cage bosses on the fork blades, making this bike genuinely ready for bikepacking adventures straight out of the box. The Bontrager Paradigm 23 tubeless-ready wheels roll on Bontrager Girona Pro 700x42mm tyres, with clearance for up to 50mm tyres without fenders, allowing riders to tailor the setup to the terrain. Whether it is a fast gravel race, a loaded multi-day tour, or a brisk commute through mixed conditions, the Trek Checkpoint ALR 5 Gen 3 adapts without compromise. BikeRadar’s hands-on assessment confirmed the bike’s sharp handling and excellent ride quality, calling it one of the best gravel bikes in its class, as detailed in their full Trek Checkpoint ALR 5 Gen 3 review.

5 Reasons You’ll Want the Trek Checkpoint ALR 5 Gen 3

• Carbon fork on an aluminium budget. The Checkpoint ALR 5 Gen 3 ships with the same full carbon fork as the premium Checkpoint SL, giving riders noticeably better vibration damping and a weight saving that is rare at this level.
• SRAM Apex XPLR 1×12 drivetrain. The wide-range 11-44T cassette and 40T single chainring deliver a gear spread that handles everything from loaded climbs to flat-out gravel sprints without the complexity of a front derailleur.
• Future-proof UDH dropout. The Universal Derailleur Hanger is compatible with a growing range of derailleurs and rear shocks, meaning the Trek Checkpoint ALR 5 Gen 3 can evolve with your riding ambitions over time.

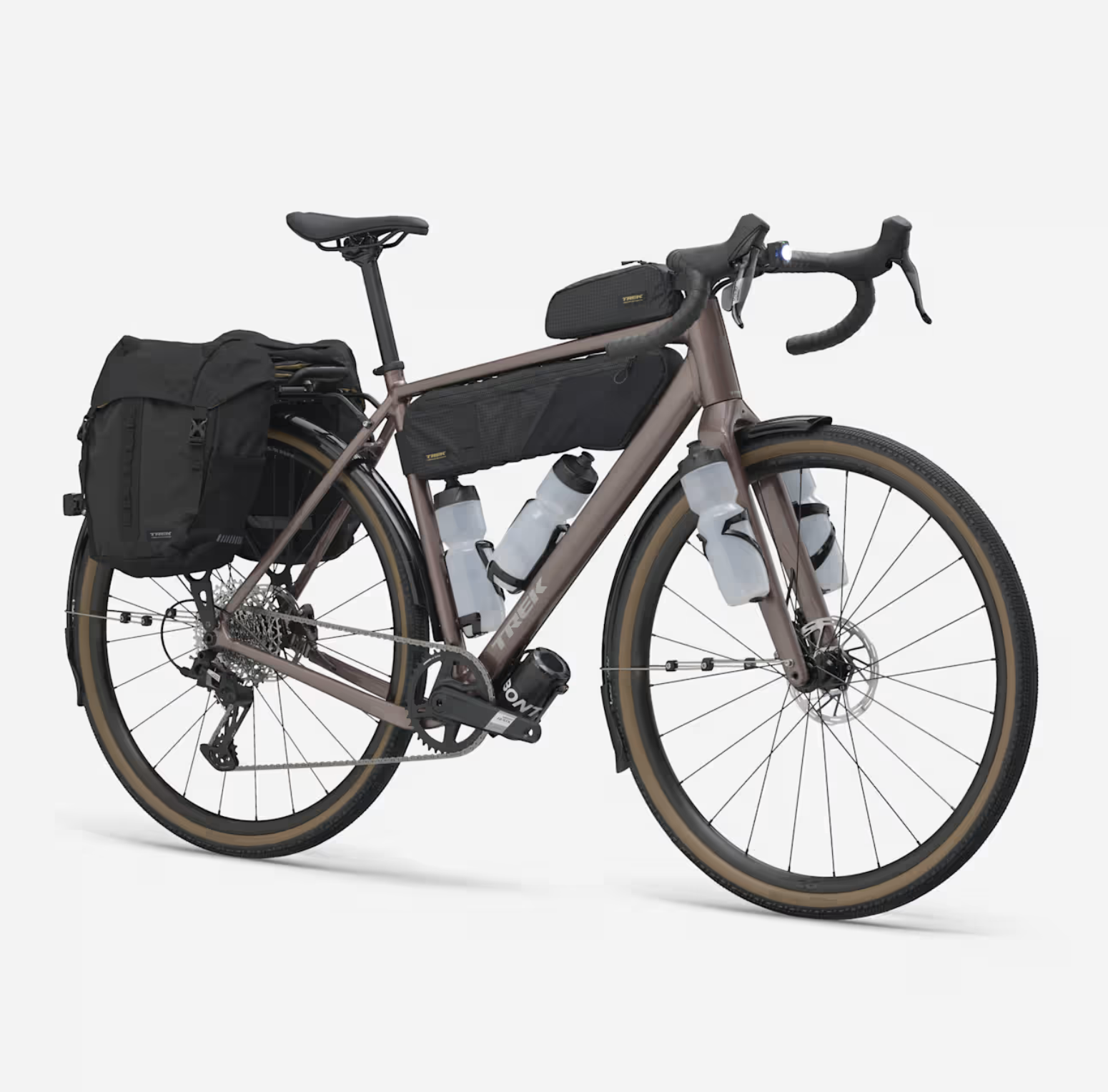

• Adventure-ready mounting system. Integrated frame bag mounts, rack mounts, fender mounts, and triple fork bottle bosses mean this bike is bikepacking-ready without any aftermarket modifications.
• Updated geometry for all-day comfort. A taller stack and shorter reach compared to the previous generation position the rider more naturally over the bike, reducing fatigue on long gravel routes and endurance rides.

Learn more about Trek here: Trek official website Contact us: https://enduroplanet.co.za/contact-us/
